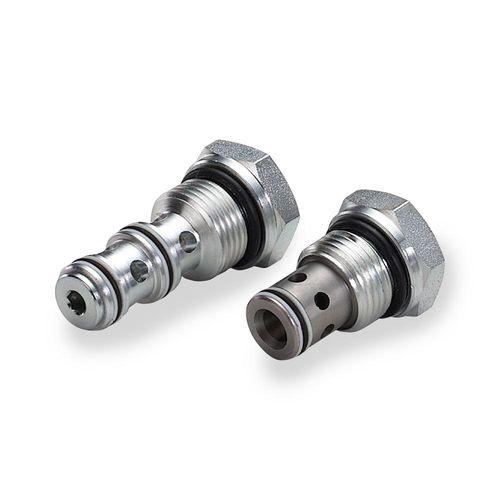

poppet hydraulic directional control valve / lever-operated / cartridge
BONDIOLI & PAVESI

{{requestButtons}}

Characteristics

  • Type:

    poppet

  • Actuating method:

    lever-operated

  • Other characteristics:

    cartridge

  • Flow rate:

    Min.: 20 l/min (5 us gal/min)

    Max.: 45 l/min (12 us gal/min)

  • Operating pressure:

    250 bar (3,626 psi)

Description

Cartridge valves are used in a wide range of applications such as agriculture, municipal, material hendling and costruction. The cartridges can be integrated in a customized block studied for specific function.
Cartridge valves are design based on standard cavity as such 9/16-18 UNF, 3/4-14 UNF, 7/8-14 UNF and 1-1/16 -12 UNF.
