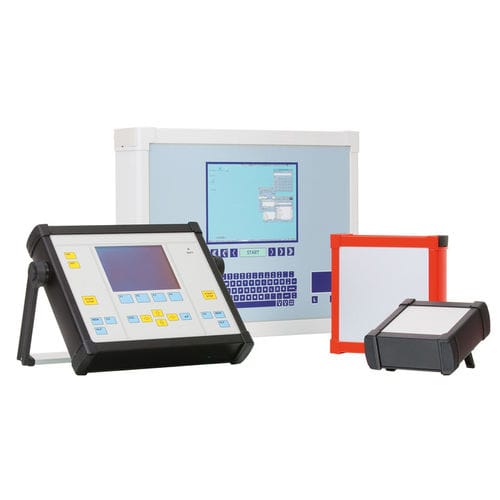

IP65 enclosure / rectangular / aluminum profile / for electronics
Aluplan series Bopla Gehäuse Systeme GmbH

{{requestButtons}}

Characteristics

  • Configuration:

    rectangular

  • Material:

    aluminum profile

  • Application:

    for electronics

  • Protection level:

    IP65, EMC

  • Width:

    278 mm, 378 mm, 478 mm, 578 mm

  • Height:

    100 mm

  • Depth:

    278 mm, 378 mm, 478 mm, 578 mm

Description

This IP 65-tight profile enclosure adapts flexibly to your requirements

2 heights
Individually adjustable length and width
16 standard sizes for each height ex warehouse
Aluminium baseplates and top covers
Good EMC characteristics
Wide range of accessories


Product search in Aluplan

Colour
Aluplan 50: black, similar to RAL 9005; Aluplan 100: light grey, similar to RAL 7035; special colours on request
Protection class
IP 65/DIN EN 60529
Enclosure material
Extruded profiles: Al Mg Si 0.5 powder-coated; corners: diecast zinc ZnAl 4 Cu 1, powder-coated; corner caps: PA-GF 15, corner seal TPV/TPE; sponge rubber seal (EPDM) in profile groove; for details see Technical Information
