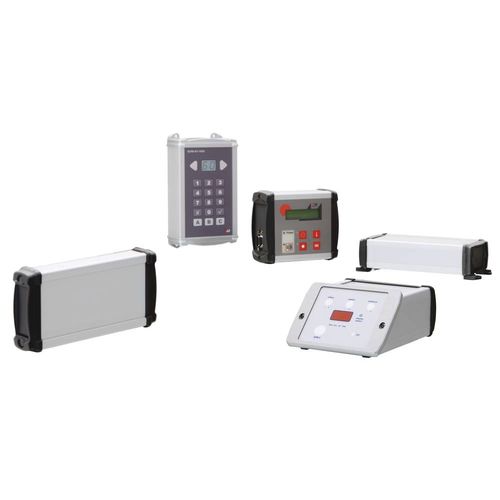

wall-mount enclosure / aluminum profile / input / extruded
BOS-Ecoline series Bopla Gehäuse Systeme GmbH

{{requestButtons}}

Characteristics

  • Construction:

    wall-mount

  • Material:

    aluminum profile

  • Other characteristics:

    input, extruded

  • Application:

    for instrumentation

  • Protection level:

    IP54, IP40

  • Width:

    58 mm, 80 mm, 106 mm, 120 mm

  • Height:

    22 mm, 42 mm, 52 mm

  • Depth:

    100 mm, 150 mm, 200 mm

Description

Clear lines and natural-coloured anodised aluminium characterise this profile enclosure

3 profile variants
4 profile cross-sections
3 standard lengths ex warehouse
Special lengths available at short notice
End covers made of ABS, similar to RAL 7037
End covers also available with moulded-on wall fitting
Console type on request


Product search in BOS-Ecoline

Colour
Profile natural-coloured anodised aluminium; plastic lid dust grey, similar to RAL 7037; special colours on request
Protection class
IP 40/DIN EN 60529; ELP with optional seal, upgradable to IP 54/DIN EN 60529; ELPH with IP 54/DIN EN 60529 on request
Enclosure material
Extruded profiles: Al Mg Si 0.5 anodised; plastic lid: ABS; for details see Technical Information
