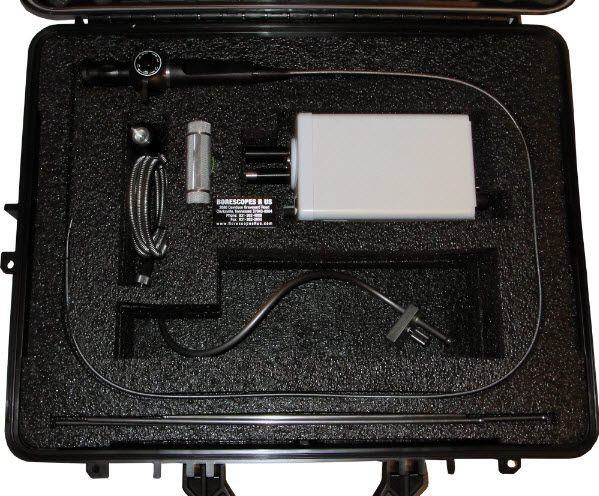

Fiberscope inspection kit
Borescopes R Us
P&W Approved Fiberscope Inspection Kit (PWC34910-108Kit)
Features
CH-2-4-1300 - Articulating Flexible Fiberscope
Diameter: 4.0mm (0.157in)
Working Length: ~1150m (43 in)
Articulation: 2-way 100°
Direction of View: 0° Forward
Field of View: 55°
High Intensity LED Light Source
Brighter, whiter light than 150W Halogen units.
Color temperature: 6500K.
Typical LED life: >50,000 hours.
Dimensions: 4.65′ W x 3.32′ H X 7.25′ D (~10′ overall)
Weight : 2.5 lbs (1.14 kg)
Pratt &Whitney Guide Tube (1)
PWC34910-200
-PWC34910-400
-PWC34910-600
Insertion Tube Holder and Rigid Sleeves.
Sleeve body gripper
3 Insertion tubes
Short Guide Tube: 290 mm
Medium Guide Tube: 380 mm
Long Guide Tube: 490 mm
Features
CH-2-4-1300 - Articulating Flexible Fiberscope
Diameter: 4.0mm (0.157in)
Working Length: ~1150m (43 in)
Articulation: 2-way 100°
Direction of View: 0° Forward
Field of View: 55°
High Intensity LED Light Source
Brighter, whiter light than 150W Halogen units.
Color temperature: 6500K.
Typical LED life: >50,000 hours.
Dimensions: 4.65′ W x 3.32′ H X 7.25′ D (~10′ overall)
Weight : 2.5 lbs (1.14 kg)
Pratt &Whitney Guide Tube (1)
PWC34910-200
-PWC34910-400
-PWC34910-600
Insertion Tube Holder and Rigid Sleeves.
Sleeve body gripper
3 Insertion tubes
Short Guide Tube: 290 mm
Medium Guide Tube: 380 mm
Long Guide Tube: 490 mm
