Signal amplifier
digitalprecisionfor load cells

signal amplifier
signal amplifier
signal amplifier
signal amplifier
signal amplifier
signal amplifier
signal amplifier
Add to favorites
Compare this product


Characteristics

Type
signal
Other characteristics
digital, precision, for load cells
Voltage

Min.: 9 V

Max.: 30 V

Description

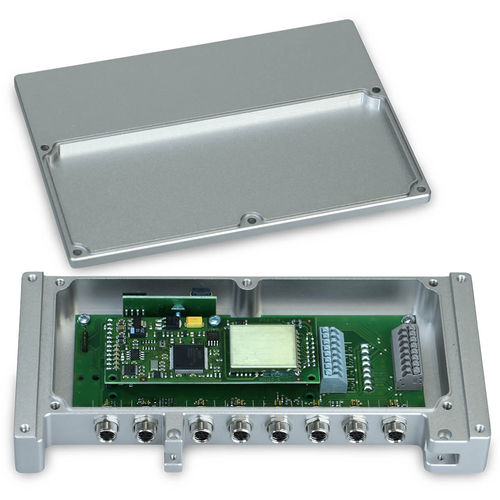

The digital Load Cell Amplifier in junction box DBB is a combination of cable box and an analog-to-digital converter. The internal high-precision digital amplifier with 24-bit A/D converter converts the output signals of the connected load cells into a stable weight value. The electronic weighing system feeds the load cells and converts, amplifies and filters the analog signal to it then digitized. On the cable box DBB-11 analog load cell 1 can be connected in four-wire technology. On the cable box DBB-14 and DBB-44 up to 4 analog load cells can be connected in parallel in four- wire technology. In DBB -14 every 4 load cells are brought together on one channel. In DBB -44 each cell is evaluated on a separate channel, thus a digital corner adjustment is possible. Features Load Cell Digitizing unit with Adaptor with screw terminal connections in terminal box for up to 4 load Approved to OIML R76 10,000d 0,2uV/d Scale Interface - Integrated 24-bit A / D converter ( 4 channels) Internal resolution 1,000,000 parts Sampling rate of the A / D converter adjustable ( 6-200 measurements per second) Digital filter Alibi memory Serial interface RS232 and RS485 Wide input voltage range : 9 - 30V DC Adjustment and setting by software Industrial-grade aluminum body Degree of protection IP65
