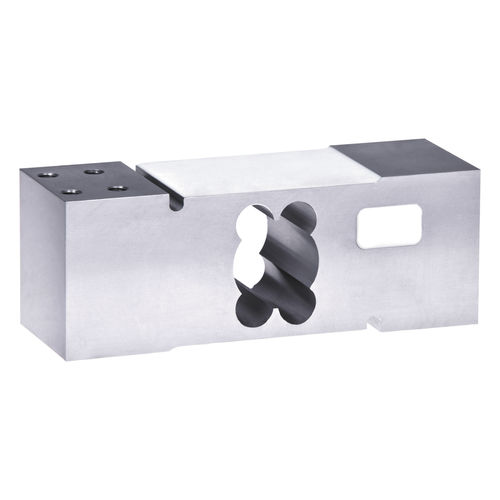

Single-point load cell / beam type / IP65 / strain gauge
H44A series Bosche GmbH & Co. KG

Characteristics

  • Type:

    single-point

  • Form:

    beam type

  • Other characteristics:

    IP65, strain gauge

  • Rated load:

    Min.: 100 kg (220.46 lb)

    Max.: 750 kg (1653.47 lb)

Description

The H44A is a single point load cell made from Aluminium. The load cell is suitable for bench scales, platform scales and weighing machines with accuracy class III. The load cell H44A is approved to OIML R60 up to 3000d and gives extremely accurate reproducible results, over a long term even in harsh industrial environments. Each individual load cell H44A is corner adjusted and optimised for out of center load sensitivity. This ensures that there will be no measurement error when the load is placed off centre, eg in a corner of a platform.
The load cell is potted and meets the requirements of protection class IP65.
