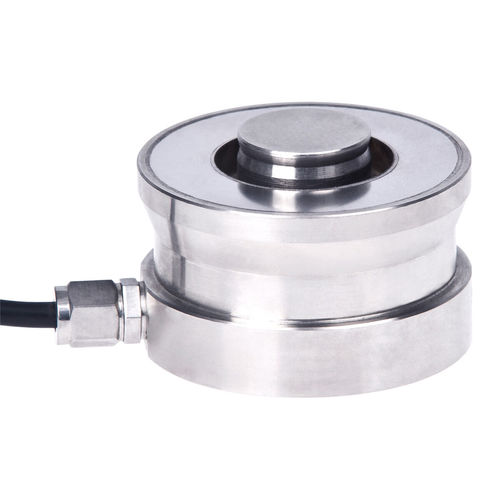

Compression load cell V50S seris

button typestrain gaugeweighing

The V50S pressure cells are used for the measurement of compressive forces in various industrial applications. The load cells are very symmetrical and compact, so it also allows the precise measurement in harsh industrial environments. The forces are always centered in the measured doses. The High load-load cell is manufactured from high alloy tool steel, laser welded and meets the requirements of protection class IP68. Application Weighing machines, cargo scales, silo and hopper scales, coil scales, heavy duty scales, as well as well as force measurements in the process industry. Feature Material: Alloy Steel Rated load: 10 - 150 t Protection class: IP 68 - laser welded Structure: the measuring element is laser-welded Particularly robust for heavy duty industrial use Low profile
