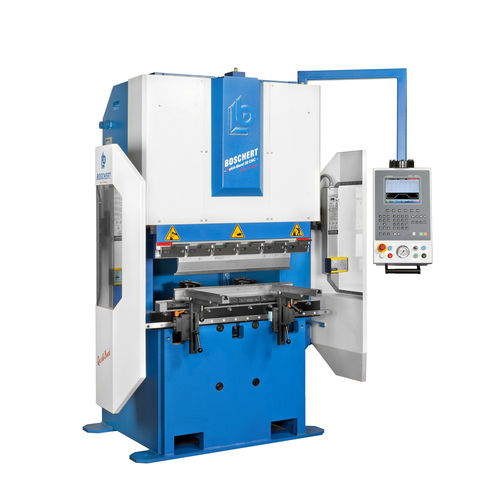

Hydraulic press brake Quick Bend
CNC

hydraulic press brake
hydraulic press brake
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Control
CNC
Press force

280 kN

Folding length

1,000 mm
(39.4 in)

Description

Weight - 3500 Kg Width - 1.600 mm Depth - 1.500 mm Height from floor - 2.450 mm Distance between the frames - 890 mm Throat depth - 200 mm Width of worktable - 2 x 270 mm Operating height - 915 mm Daylight - 305 mm Y-Travel - 200 mm Max. stop range in X - 500 mm Downspeed - 250 mm/s Working speed - 8-10 mm/s Upstroke speed. - 200 mm/s Repeatability - +/- 0,02 Power supply - 5,5 kVA Power supply - VisiTouch 19
