hydraulic press brake / CNC
560 kN, 2 700 x 1 670 x 2200 mm | Profi 56 CNC series Boschert GmbH & CoKG

{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Control type:

    CNC

  • Press force:

    560 kN

  • Folding length:

    Max.: 2,200 mm

    Min.: 1,000 mm

Description

This machine has what it takes:

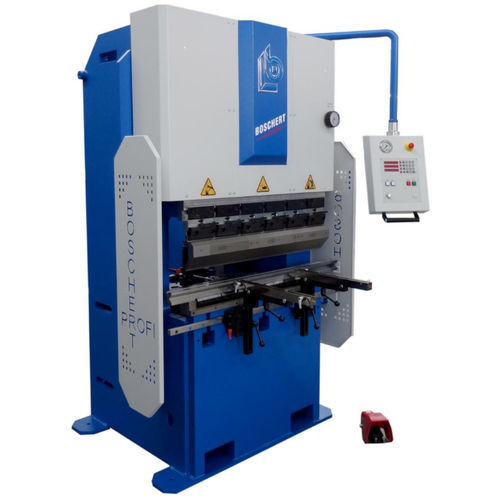

the PROFI 56 CNC universal die-bending press

Efficient, economical folding, bending and pressing in the workshop and on the production floor

As simple as possible, providing as much as you need, plus various options for individual customization - according to this principle, Boschert GmbH & Co. KG, the specialist for notching, punching, bending and deburring machines in Lörrach, Germany, have expanded the PROFI hydraulic die-bending and folding press series to include the new PROFI 56 CNC model. A press system for universal application was developed based on the oft-proven design on a solid welded frame, with a folding beam guided by four sophisticated linear components as well as two hydraulic pressure cylinders with 28 tons of pressure each. The practical combination consists of four linear guides at right and left for the folding beam, two separately controllable hydraulic cylinders for the raising/lowering operation of the upper tool, two measuring systems per cylinder, two versions of tool holders for different stamping systems, the electrically driven and thus freely positionable rear stop system as well as the control unit.
