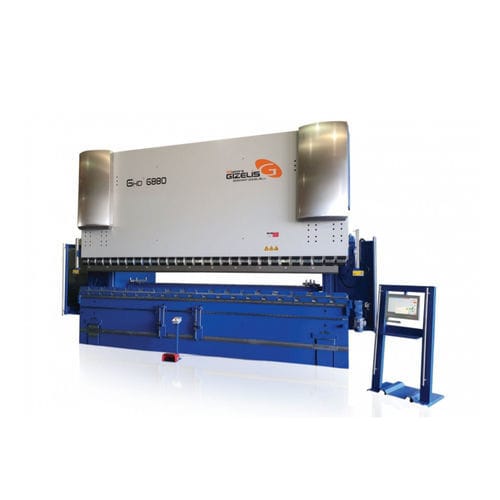

hydraulic press brake / CNC
3 300 - 4 400 kN, 3 100 - 6100 mm | G-HD series Boschert GmbH & CoKG

{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Control type:

    CNC

  • Press force:

    Min.: 3,300 kN

    Max.: 4,400 kN

  • Folding length:

    Min.: 3,100 mm

    Max.: 6,100 mm

Description

Standard equipment

* Industrial control Cybelec ModEva 10S with graphical simulation.
* Y1, Y2 independent hydraulic cylinders, proportional valve technology.
* Extra welded frame on the sides.
* Ram guidance with heavy duty slides.
* Efficient, low noise, high speed, superior accuracy hydraulic system.
* Stroke & Daylight dependent upon the model and customer request.
* 2 axis heavy duty back gauge system X+R with double linear guides.
* Standard manual anti deflection system.
* Standard heavy duty front gauges on linear guide.
* Heavy duty mechanical upper tool clamping system, Promecam- Amada adaptors on demand.
* Heavy duty mechanical lower tool clamping.
* Standard Laser safety Fiessler German origin CE certified.
* Wide selection of tools and accessories.
