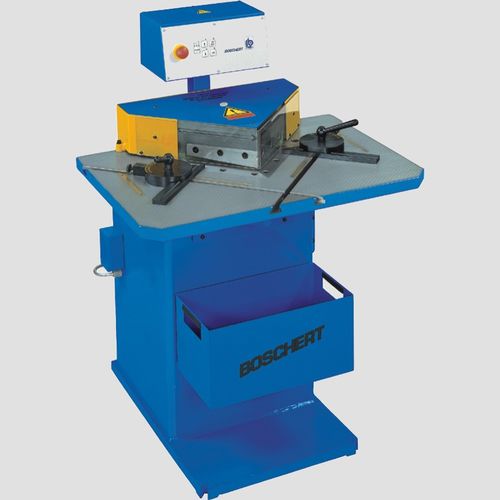

90° fixed angle notching machine LB 13

automatic

The LB 13 Standard is the basic model of its line and permits notching with a fixed angle of 90°. lt guarantees clean cuts in all sheet metal thicknesses and high repetitive accuracy of the notchings. lt is also ideally suited for cuts on one side. Because of the special design of the LB 13 the blades achieve an extraordi-narily high life even when notching special steel. Cutting capacity 6mm St 40 (90° notch )4mm Stainless Length of cut 225 x 225 mm Length 1350 mm Width 1100 mm Height 1200 mm Width of table 1100 mm Length of table 789 mm Height of table 900 mm
