fixed-angle notching machine / hydraulic
max. 6 mm, 90° | LB 13 KE Boschert GmbH & CoKG

{{requestButtons}}

Characteristics

  • Type:

    fixed-angle

  • Operation:

    hydraulic

Description

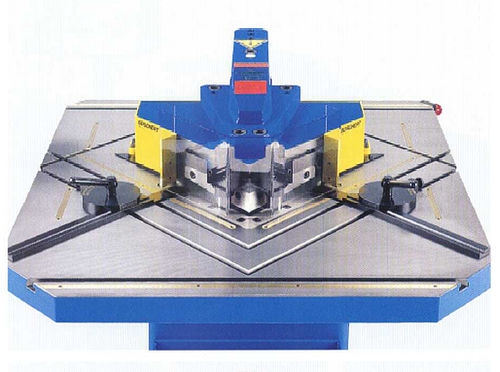

Hydraulic 2 station machine for notching and coping.
The LB 13 KE is a machine which dis-tinguishes itself from the basic model by a second work station.

Station 1
Notching with a fixed angle of 90°, other features as for LB 13 Standard.

Station 2
Coping to a depth of 100 mm, 25 mm wide ( Resetting of width as desired ). St 40: 4 mm thick, special steel: 3 mm

The standard equipment contains:
Locking precision stop with stop rails, stripper, stripe cutter, device for notch-ing amplifications of more than 225 mm,
freely moveable foot pedal for triggering the stroke, two holding-down clamps for sheet metal and plexiglass guard for notching
with a good overall view.
