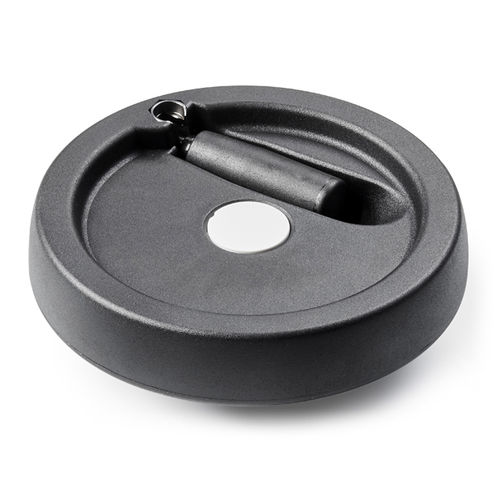

Control handwheel C199
solidswing-handlepolyamide

control handwheel
control handwheel
control handwheel
control handwheel
Add to favorites
Compare this product


Characteristics

Function
control
Configuration
solid, swing-handle
Material
polyamide
Outside diameter

124 mm, 149 mm
(4.88 in, 5.87 in)

Bore size

36 mm, 38 mm
(1.42 in, 1.5 in)

Description

Materials: Reinforced and stabilised polyamide. Oils and greases resistant. Surface: Satin. Colour: Black (RAL 9011). Central cap: Grey polyamide cap (RAL 7035 cod. 13). Alternative cap colours: Orange (RAL 2004 cod. 02). Blue (RAL 5015 cod. 07). Yellow (RAL 1021 cod. 10). Red (RAL 3000 cod. 16). Green (RAL 6024 cod. 17). Black ( RAL 9011 cod. 01). Main insert: Zinc plated steel insert with right through smooth bore, (bore tolerance H10). Side handle: Flush,foldaway revolving handle, with hexagonal connection. Reinforced polyamide black handle. Black-oxide treated internal mechanism. Fixed with black-oxide treated hexagon socket button head screw ISO 7838. Fixing: For fixing system, or execution of keyway or square holes, please refer to the technical notes attached to the catalogue. SPECIAL REQUESTS: On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish. Add the letters ZB to the standard code. Example: C199125.TD1001PZB. It’s possible to supply the inserts with d1 bore by customer design, on request and for quantities. It’s possible to supply the inserts in different material and treatment-finishes, on request and for quantities. It is possible to supply colours as shown on colour table page (Attention reduce range) [pageTitoloTabellaColori.
