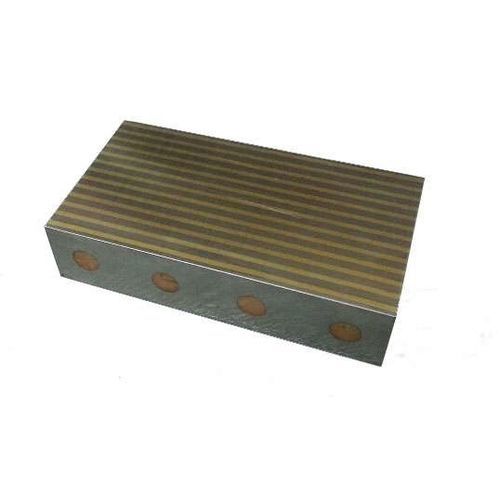

Laminated shim LB series

Rugged constructionLonger lifeSilver brazed top plateBrass/Steel . Silver-brazed top plate machinable . Pole pitch : steel 3 mm - brass 1.5 mm (or 4+2) Laminated blocks do not have a magnetic field of their own, but are able to transmit the magnetic flux of the chuck towards the workpiece, by positioning them with the laminations being parallel to those of the chuck pole plate. They are used to protect the pole plate when carrying out difficult machining operations. Use : ControlEDMMillingDrillingPositionningGrindingMachining Pole pitch : 4.5 mm3 mm of steel1.5 mm of brass Options :Delivered by pair on request Any other dimensions on request Other pole pitch (4+2)
