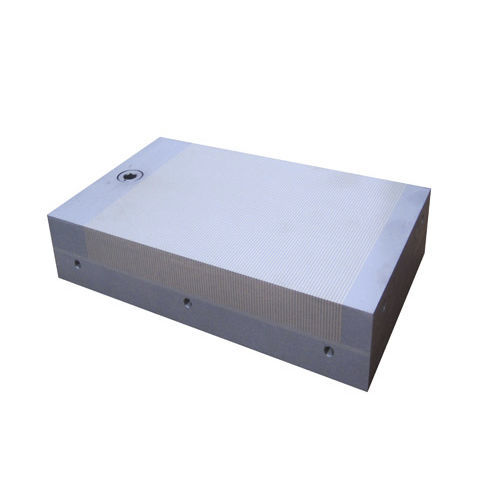

Permanent magnet magnetic chuck 95 N/cm² | PF2-EDM seriessine tablefor EDM
Add to favorites
Compare this product
Characteristics
- Technology
- permanent magnet
- Type
- sine table
- Applications
- for EDM
Description
Low magnetic fieldPower adjustableWaterproof constructionRugged constructionForce: 95 N/cm²Low heightLonger lifeStabil top plateFine pole pitch/ p=2 mm
. Permanent magnetic chuck with NEODYNIUM magnets
. Parallel fine pole pitch: steel + brass
. Lower height
Use : EDM
Magnetic field height : 3 mm Admissible wear of top plate : 8 mm Nominal force : 95 N/cm² Pole pitch : 2 mm1.5 mm of steel0.5 mm of brass
Options :With flashing holes system for EDM machines
Sine execution
Palettizing system in the base plate:EROWA-3R-HIRSCHMANN-V&B ...
