Low magnetic fieldPower adjustableWaterproof constructionRugged constructionForce: 85 N/cm²Longer lifeStabil top plateFine pole pitch/ p=2 mm

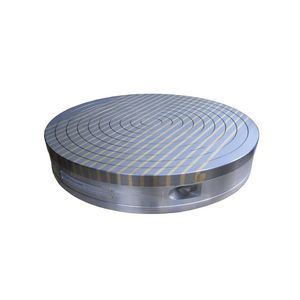

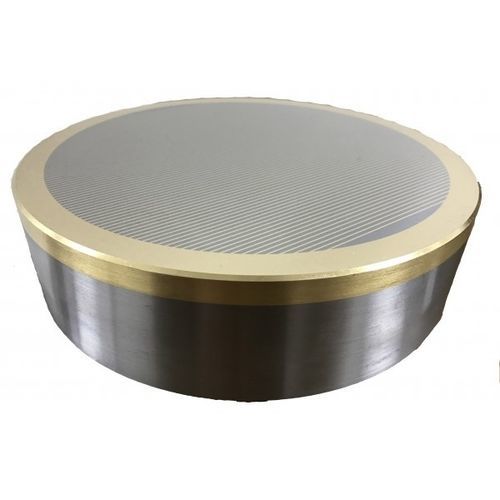

. Circular magnetic chuck with NEODYMIUM magnets
. Low magnetic field
. Fine pole pitch
. Suitable for small and thin workpieces
. Specially designed for high precision applications
. Magnetic holding power adjustable from 0 to 100%
Use : ControlEDMGrindingLaser welding
Magnetic field height : 4 mm Admissible wear of top plate : 5 mm Nominal force : 85 N/cm² Pole pitch : 2 mm1.5 mm of steel0.5 mm of brass
Options :Mounting flange
Concentric grooves for easy centering workpieces
Any other machining in the top or base plate
Palettizing systems: ITS-100 EROWA
Auxiliary top plate
Special design for laser welding
Palettizing system in the base plate:EROWA-3R-HIRSCHMANN-V&B ...
