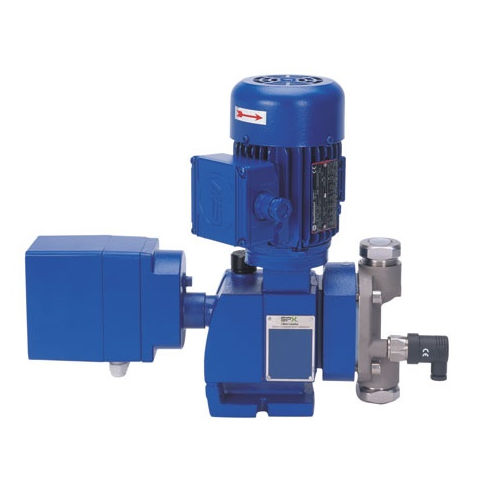

potable water pump / electric / diaphragm / industrial
ProCam Bran+Luebbe

{{requestButtons}}

Characteristics

  • Media:

    for potable water

  • Operation:

    electric

  • Type:

    diaphragm

  • Domain:

    industrial

  • Other characteristics:

    mechanically-actuated, rugged, metering, cast iron, PTFE, actuated

  • Flow:

    Max.: 60 l/h (15.8503 us gal/h)

    Min.: 0.16 l/h (0.0423 us gal/h)

  • Pressure:

    80 bar (1,160.302 psi)

Description

Our classic series of mechanically actuated double diaphragm pumps for low to medium range applications, brings the advantages and security of the double diaphragm concept to a wide variety of applications at an economical price.
At a glance:

Hermetically sealed pump head with mechanically operated PTFE double diaphragm allowing
- safe metering of hazardous liquids
- contamination free operation (important in potable water production)
Allows economic operation without loss in operating safety and reliability
2 years warranty of PTFE double diaphragm
Diaphragm condition monitoring
Outstanding corrosion resistance due to high quality PTFE double diaphragm

General:

Gear box in a rugged cast iron housing
Integrated worm gear
Splash lubrication
Electric motor (IEC, IP55)
