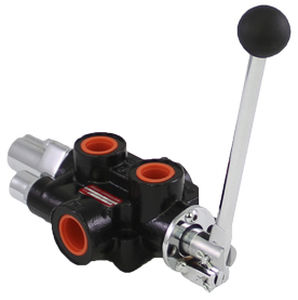

spool hydraulic directional control valve / lever-operated / 4-way / compact
AO series BRAND HYDRAULICS

{{requestButtons}}

Characteristics

  • Type:

    spool

  • Actuating method:

    lever-operated

  • Ports/positions:

    4-way

  • Other characteristics:

    compact

  • Flow rate:

    Min.: 0 us gal/min (0 l/min)

    Max.: 18 us gal/min (68 l/min)

  • Operating pressure:

    3,000 psi

Description

FEATURES:
 SMALL AND COMPACT to fit your design requirements.
 POSITIVE METERING in either direction with the manually shifting handle.
 PRECISION GROUND IOSSO PLATED SPOOL that assures long life.
 OPTIONAL O’RING PORTS to eliminate leakage.
SPECIFICATIONS:
 Rated for 0-18 gpm (0-68.1 lpm).
 Rated for 3000 psi (207 bar).
 Weighs 5-1/2 lbs. (2.5 kg).
 Std. Port sizes (Consult factory for others).
- 3/4”NPT Inlet/outlet and 1/2” NPT
work ports.
- #12SAE Inlet/outlet and #10SAE work
ports.
 30 – Micron filtration recommended.
