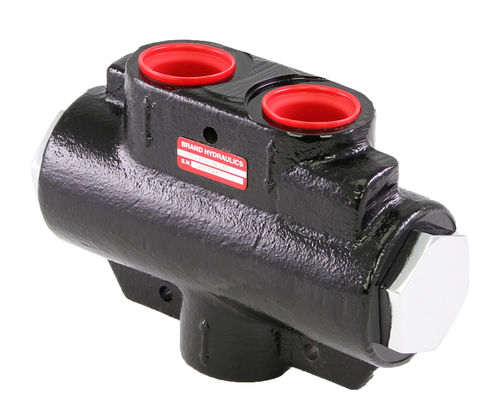

Hydraulic flow divider BG4 seriesfixed-prioritycast iron
Add to favorites
Compare this product
Characteristics
- Flow type
- hydraulic
- Priority
- fixed-priority
- Material
- cast iron
- Operating pressure
3,000 psi
- Flow rate
Max.: 45 us gal/min
(170 l/min)Min.: 30 us gal/min
(114 l/min)
Description
PRECISION GROUND HEAT TREATED SPOOL that assures long life.
PRESSURE COMPENSATION for both outlet ports.
PRIORITY FLOW IS PRESET at factory to customer requirements.
EVERY BG4 IS TESTED for priority flow and pressure compensation.
LARGE METERING SPOOL provides a greater area for the pressure differential to act upon.
SPECIFICATIONS:
Rated for 3000 psi (207 bar).
Rated for 30-45 gpm (114-170 lpm).
30-Micron filtration recommended.
Weight 8.5 lbs. (3.9 kg).
Standard port size.
#16SAE (1-5/16-12) all ports.
