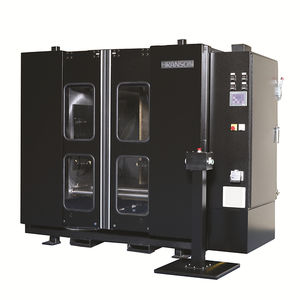

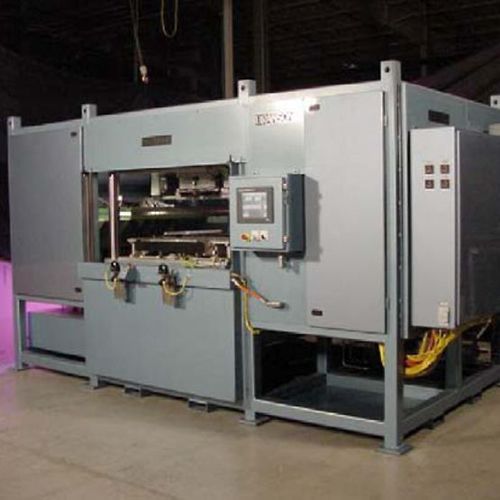

Hot plate welding machine HH72Aautomaticcompacthydraulic
Add to favorites
Compare this product
Characteristics
- Technique
- hot plate
- Operational mode
- automatic
- Other characteristics
- compact, hydraulic
Description
Non-Contact flexible plastical joining for high strength and complicated geometrical parts
Max. Upper/Lower Opening 737 mm
Max. Press Stroke 407 mm
Max. Heat Platen Stroke: in/out 686 mm
No. of Heat Controllers Std. 4
Weight Approx. 4,773 kg
Min. Air Pressure 552 kPa (80 psi)
Actuation Hydraulic
Communication Protocol EtherNet/IP
Data Interface Red Lion Data Station Plus
- Allen Bradley Compact Logix with color touch screen HMI
- Interlocked safety doors with full guarding
- Heavy duty construction, THK bearing system
- Automatic cycle start
- Digital temperature controllers
- Independent zone temperature controllers, number based on individual model
- Linear displacement transducer for platen and carriage position
- Hydraulic proportional valves
