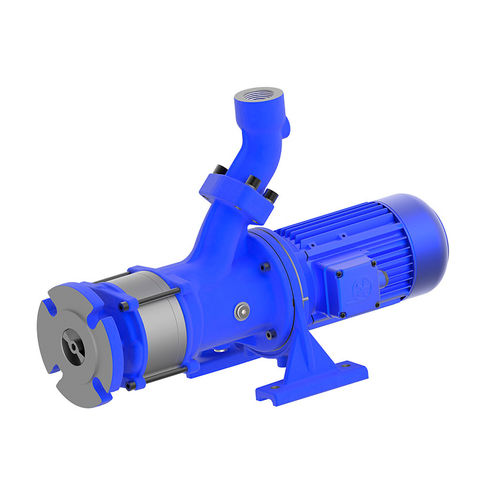

lubricant pump / for coolant / electric / centrifugal
SBA141...143 series Brinkmann Pumpen

{{requestButtons}}

Characteristics

  • Media:

    for coolant, for lubricants

  • Operation:

    electric

  • Type:

    centrifugal

  • Domain:

    industrial, for machine tools, for the metallurgical industry

  • Other characteristics:

    compact, horizontal mount, multi-stage, with mechanical seals, close-coupled, in-line, cooling, feed, for emulsions, cutting fluid

  • Flow:

    Max.: 160 l/min (42.2675 us gal/min)

    Min.: 0 l/min (0 us gal/min)

  • Head:

    Max.: 35 m (114'09")

    Min.: 0 m (0'00")

  • Power:

    Max.: 1.95 kW (2.65 hp)

    Min.: 0.54 kW (0.73 hp)

Description

Horizontal End-Suction Pumps

are centrifugal inline pumps with a compact design where the impeller is mounted onto the extended motor shaft.
These pumps are not self-priming and must be gravity fed. All pumps are equipped with a single mechanical seal.
Upon request a second mechanical seal is available to allow for dry-running (-GD).
This pump series is designed for horizontal installations next to a tank and for pumping air entrained coolant fluids, such as water-soluble coolants or cutting oils, as they occur in high speed turning, milling or grinding applications.
The SBA pumps are equipped with the user-friendly (SAE) flange connection which allows for either vertical or horizontal pipe connection and the connection of a pressure gauge with G ¼.
