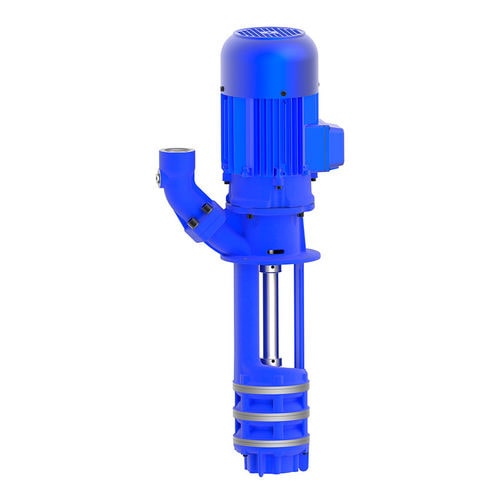

Coolant pump SAL401...409 series
for lubricantselectricsemi-submersible

coolant pump
coolant pump
Add to favorites
Compare this product

Go to the Brinkmann Pumpen website for more information

Characteristics

Fluid
for coolant, for lubricants
Operation
electric
Priming
semi-submersible
Technology
centrifugal
Domain
industrial, for the metallurgical industry, for machine tools
Applications
suction, cooling, for emulsions
Material
steel
Fluid specification
cutting fluid
Other characteristics
multi-stage, flange, vertical-mount, slurp, low-pressure
Flow

Max.: 440 l/min
(116.2357 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Head

Max.: 92 m
(301'10" )

Min.: 0 m
(0'00" )

Power

Max.: 6.9 kW
(9.38 hp)

Min.: 0.85 kW
(1.16 hp)

Description

Quick suctioning immersion pumps equipped with the patented "BRINKMANN`s Suction De-aeration System" are excellently suited to pumping extremely inflated fluids (emulsions resp. cooling/cutting oils) as they occur in heavy cutting when turning, milling or grinding. The quick suctioning immersion pumps reach stable working conditions as soon as the liquid level reaches the suction inlet. The SAL serie offers a (SAE) flange with pressure gauge connection port. The flange can be rotated for either horizontal or vertical pipe connections. Applications Types of fluid - - coolants cooling/cutting oils - Kinematic viscosity - - ...45 mm²/s (45 cSt) - Pumping temperature - - 0...80° C - Construction Pump body - - cast iron Cover - - cast iron Impeller axial - - cast steel Impeller radial - - brass Shaft - - steel Optional: - - Impeller radial - - cast steel
