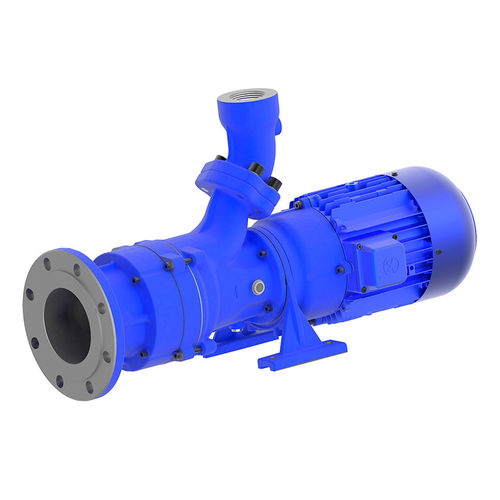

Coolant pump SBC series

for lubricantselectricsemi-submersible

Horizontal End-Suction Pumps are centrifugal inline pumps with a compact design where the impeller is mounted onto the extended motor shaft. These pumps are not self-priming and must be gravity fed. All pumps are equipped with double mechanical seal. This pump series is designed for horizontal installations next to a tank and are capable of cutting aluminium chips and similar materials and pumping of these materials along with the coolant fluid. An agitator located at the pump suction helps to break up and separate any large bundles of chips or birds nests which reach the pump suction. The specially made cutting unit (>60 HRC) is cuting chips and the above located semi-open impeller allows with its large clearances to pump the particles along with the coolant fluid from the machine back to the filter. The SBC pumps are capable of handling chip to coolant ratios of up to 1.5% by weight. The SBC pumps are equipped with the user-friendly 45 degree flange connection which allows for either vertical or horizontal pipe connection and the connection of a pressure gauge with G ¼. Applications Types of fluid - - coolants cooling/cutting oils on request - Max. chip to coolant ratio by weight: - - 1.5 % - Chip material: - - Aluminium - Chip geometry: - - Chip bundles to max. Ø 100 mm - Kinematic viscosity - - ...45 mm²/s (45 cSt) - Pumping temperature - - 0...80° C Construction Pump body - - cast iron Cover - - cast iron Impeller axial - - cast steel Impeller radial - - cast steel Cutting unit - - Hardened (>60 HRC) Agitator - - Highly ductile Shaft - - steel Mechanical seal - - SiC - - Noise level - - 71 dBA (SBC820...SBC1120) 74 dBA (SBC1520...SBC1820)
