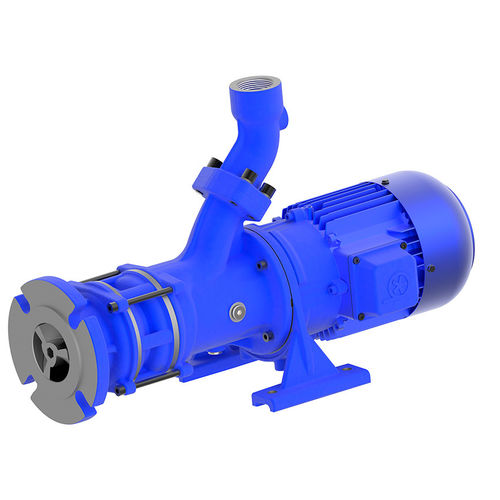

lubricant pump / electric / centrifugal / for machine tools
SBA601...604 series Brinkmann Pumpen

{{requestButtons}}

Characteristics

  • Media:

    for lubricants

  • Operation:

    electric

  • Type:

    centrifugal

  • Domain:

    for machine tools

  • Other characteristics:

    compact, with mechanical seals, central aspiration, cooling, for industrial applications, suction, horizontal mount

  • Flow:

    Min.: 0 l/min (0 us gal/min)

    Max.: 650 l/min (171.7118 us gal/min)

  • Head:

    Min.: 0 m (0'00")

    Max.: 48 m (157'05")

  • Power:

    Min.: 1.1 kW (1.5 hp)

    Max.: 5.75 kW (7.82 hp)

Description

Horizontal End-Suction Pumps
are centrifugal inline pumps with a compact design where the impeller is mounted onto the extended motor shaft.

These pumps are not self-priming and must be gravity fed. All pumps are equipped with a single mechanical seal.
Upon request a second mechanical seal is available to allow for dry-running (-GD).

This pump series is designed for horizontal installations next to a tank and for pumping air entrained coolant fluids, such as water-soluble coolants or cutting oils, as they occur in high speed turning, milling or grinding applications.

The SBA pumps are equipped with the user-friendly (SAE) flange connection which allows for either vertical or horizontal pipe connection and the connection of a pressure gauge with G 1/4.

For more information see mechanical features within the technical information section.
