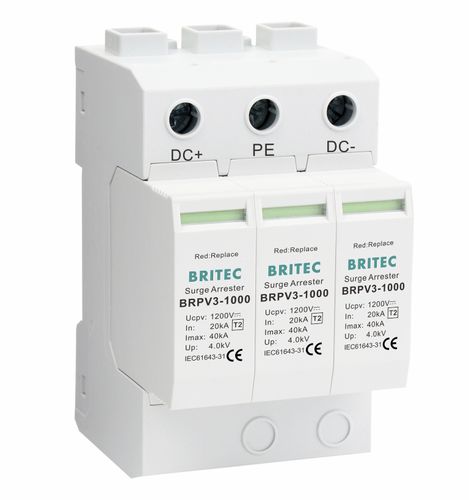

Type 2 surge arrester BRPV3-1000class IIremote signalingfor electrical installations
Add to favorites
Compare this product
Characteristics
- Type
- type 2, class II
- Applications
- remote signaling, for electrical installations, for transient current protection, electronic equipment, electrical line, for photovoltaïc installations, anti-surge, DC power
- Other characteristics
- with fault indication, varistor, modular, low-voltage, DC, DIN rail, plug-in, screw-in, fast-response, thermoplastic
- Voltage
1,000 V
- Primary current
Max.: 40,000 A
Min.: 20,000 A
Description
Features:
· 3 modular.
· Status indication.
· For DIN rail mounting.
· Rated voltage 1000V DC.
· Arresting capacity to 40 kA (8/20us) per pole.
· BRPV3-1000 surge arrestor, type 2 surge arrester.
Application：
· Designed especially for surge protection of the PV strings, apply to the Photovoltaic power grid-connection system.
· Used for PV systems with or without separate lightning protection system.
· Used to protect the sensitive line of the solar power generation protection device.
· It widely used in PV DC combiner box, inverter, controller and PV DC cabinet.
Advantage：
· Easy replacement, plug-in arresters
· Optimum inverter protection, low protection level
· Fault indication via red mark in the inspection window.
· High Energy Varistor, Response Time Less Than 25 Nanosecond
· High effective for lightning protection.
· Optional Remote Signalling
· Leakage current free option
