mass flow meter / thermal / for gas / digital

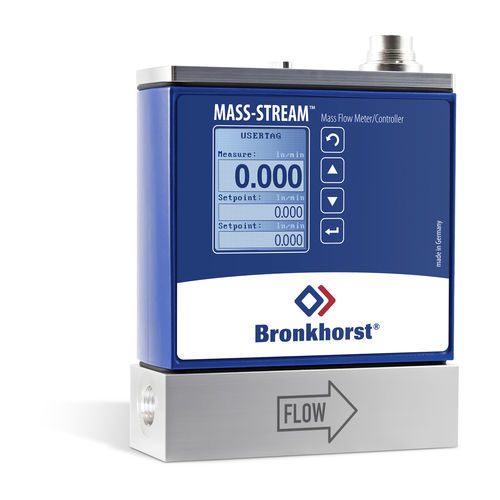

MASS-STREAM™ D-6300 series Bronkhorst

{{requestButtons}}

Characteristics

  • Technology:

    mass, thermal

  • Fluid:

    for gas

  • Other characteristics:

    digital, direct-reading, in-line, IP65

  • Applications:

    industrial

  • Process pressure:

    7 bar, 16 bar, 20 bar (101.53 psi)

  • Volumetric flow rate:

    Min.: 0 l/min (0 us gal/min)

    Max.: 10,000 l/min (2,641.7 us gal/min)

Description

The digital MASS-STREAM™ series D-6300 works on the basis of direct through-flow measurement, following the constant temperature anemometer principle.

Lowest range 0,01…0,2 ln/min
Highest range 200…10000 ln/min
The instruments have IP65 protection as a standard and are operated with a main-board with all functions for accurate flow measurement and control. They can be supplied with commonly used digital or analogue input/output signals. Along with the standard RS232, PROFIBUS DP, DeviceNet, FLOW-BUS and Modbus-RTU are available as an option.

One key element and innovative improvement is the optionally integrated, modern, multi-functional and multi-colour display, fully IP65 compliant with operator buttons on the instrument. With its multiple functions, such as actual flow indication, totalisation and alarms, MASS-STREAM™ series D-6300 offers an excellent price-performance ratio. The instruments are suitable for application in laboratories, production machinery as well as industrial installations.
