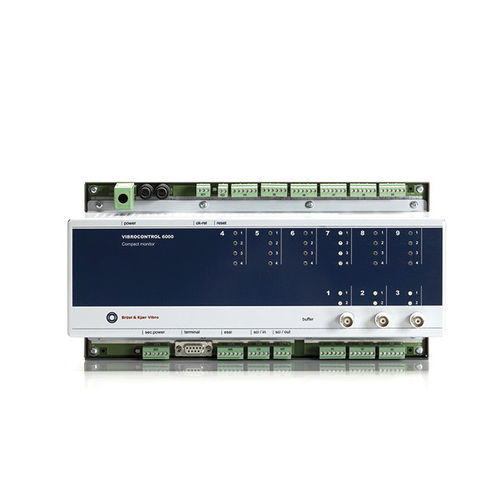

Condition monitoring system VIBROCONTROL 6000™ Compact monitor

vibrationfor machinesonline

This permanently installed machine protection system easily adapts to customer requirements thanks to a flexible hardware and software concept. There are over 200 powerful and price-optimized standard monitoring solution packages available for this instrument. VIBROCONTROL 6000® Compact monitor (VC-6000® Cm) is used for protecting machines of all types from excessive vibration. The instrument acquires not only vibration data but also process data. In particular, it measures and monitors: • absolute casing vibration (according to DIN ISO 10816) • relative shaft vibration (according to DIN ISO 7919) • rolling-element bearing condition • axial shaft position • radial shaft position and • temperature and process values. The device is highly flexible and thereby meets all typical monitoring and machine protection requirements. The OPC interface allows for connection to a Windows PC for data export, storage and visualization. Optionally, the instrument comes in a protective housing for use in harsh industrial environm VIBROCONTROL 6000® Compact monitor can also easily adapt to your monitoring needs – please contact us to find out more about the ideal configuration for your machinery!
