Frame
with balls Ø 15 mm: galvanised U-form steel 20/70/20x2 mm
Table plate
4 mm sheet steel framed and supported by steel braces.
LaqueringRAL 5015 blue
Ball transfer units
Ball-Ø 15 mm /Payload 50 kg*
Galvanised housing, pure steel balls
General user information:

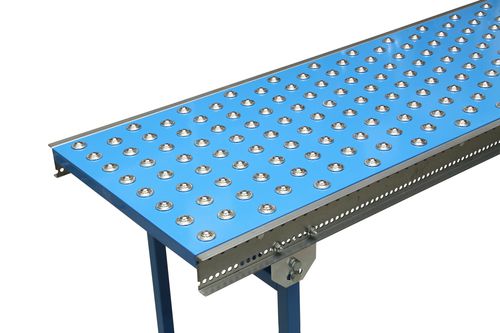

Ball transfer tables are for direction changes in a conveyor section, or for turning and general moving of packages, eg. at workplaces.
Transported goods are only supported by the roller balls and need to have flat, hard, stable and clean bases.
The smallest article must lie on at least 3 of the roller ball lines. (ball distances x 3 = minimum length and width)
Individual roller balls Ø 15 mm have a load capacity of 50kg. The ball tables offered here have a package load capacity of up to 40 kg.
Tables with ball sizes-Ø 22 mm can carry heavier loads. Please supply us with the intended weights.
Alternative table sizes according to your specifications are available.
Frame:
with Ø 15mm roller balls: galvanised U-form steel 20/70/20x2 mm
Ø 22mm balls: galvanised U-form steel 40/80/40x3 mm
table plate:
4 mm sheet steel framed and supported by steel braces. Table laquered with RAL 5015 blue
lacquering: RAL 5015 blue
roller balls:
Ø 15 mm balls/ load capacity 50 kg*
Ø 22 mm balls/ load 130 kg
galvanised housing, pure steel balls.
