Corrosion monitoring system 6004-0093

marinewatermeasuring device

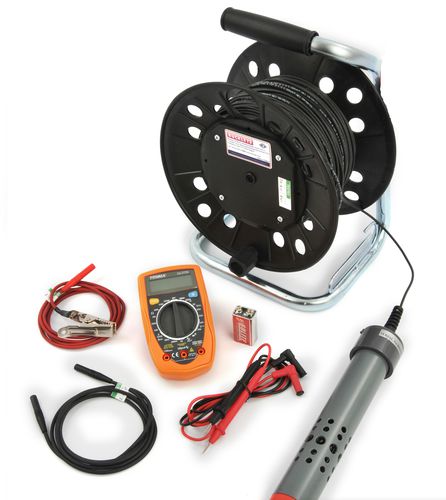

The Marine Survey Kit comprises a Weighted Silver/Silver Chloride Half Cell and plastic cable spool. The kit has been specially created to include all items required to easily carry out a corrosion survey of marine structures. The half cell is housed in a PVC body with holes to allow the easy flow of water around the cell. The half cell is weighted to help keep it in position. The cell is connected to the cable spool by 150m of CSP 55/015 cable. The kit can be tailored to suit specific customer’s requirements. Kit comprises: • Weighted silver/silver chloride half cell • 75 or 150m cable • Two leads for connecting with spool and multimeter • Cable spool • Multimeter Features: 150m cable Inert PVC body casing Lightweight Long service life Supplied with Certificate of Inspection and Conformity Technical Specifications: Half Cell: Size: 140mm long x 25mm diam. Temperature coeff: -0.6mV per/°C Temperature range: 0 - 30 °C Working life: 1 to 5 years Output: +42mV @ 25°C to K-Series reference cell Multimeter: 3½ digit display DC, AC, voltage & current ranges DC accuracy: +/- 0.5% AC accuracy: +/- 0.8% Plus Ohm & Hz ranges Packed weight (complete kit): 3.5Kg Dimensions (packed): 36cm x 36cm x 36cm Note: Due to ongoing technical developments, all stated information is typical and is subject to change without notice or obligation.
