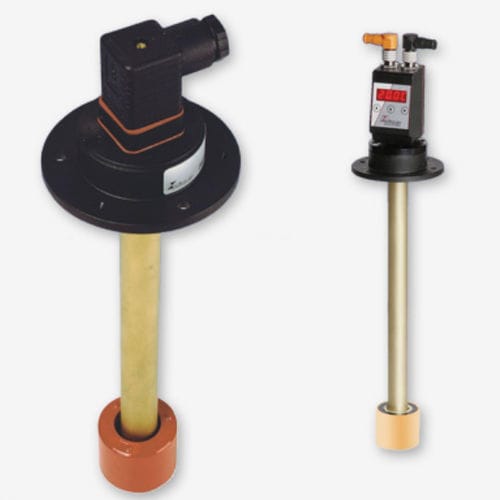

Magnetic float level switch NT 61
for liquidsfor tankflange

magnetic float level switch
magnetic float level switch
magnetic float level switch
magnetic float level switch
magnetic float level switch
Add to favorites
Compare this product


Characteristics

Technology
magnetic float
Medium
for liquids
Applications
for tank
Mounting
flange
Other characteristics
4-20 mA, with temperature switch
Process temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Process pressure

1 bar
(14.5 psi)

Description

Connecting flange as per DIN 24557 T2 Proven and tested highly dynamic float system applicable up to 230 V up to 4 level contacts Temperature monitoring as switch, Pt100 or 4-20 mA output Level and temperature switch with display NT 61D Connecting flange as per DIN 24557 T2 up to 4 programmable temperature switch points alternatively, a continuous temperature signal (configurable to current or voltage) plus one freely programmable switching output Characteristics of switching outputs configurable as window or hysteresis Two switching outputs configurable as frequency output (1-100 Hz) In hydraulics and lubrication technology the liquid level of oil tanks must be monitored. In the process, modern factory automation requires the provision of compatible signals. Despite central system control, visualising the current level on the actual tanks is often desired.
