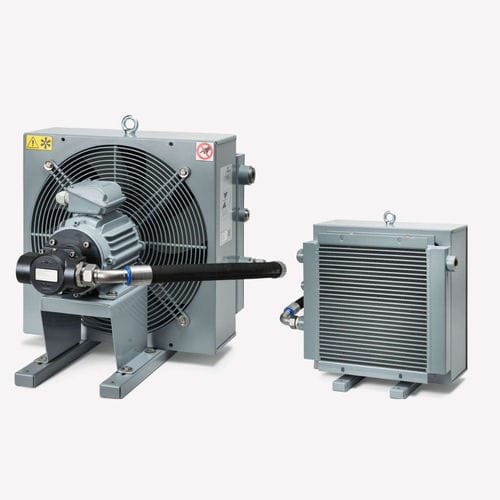

Air cooler BNK series oilfor hydraulic applicationscompact
Add to favorites
Compare this product
Characteristics
- Material
- air, oil
- Applications
- for hydraulic applications
- Other characteristics
- compact, IP55, with AC motor
- Power
Max.: 44,000 W
(150,134.16 BTU/h)Min.: 1,600 W
(5,459.42 BTU/h)- Maximum temperature
Max.: 80 °C
(176 °F)Min.: -15 °C
(5 °F)- Flow rate
Max.: 88 l/min
(23.247 us gal/min)Min.: 8 l/min
(2.113 us gal/min)- Pressure
Max.: 600,000 Pa
(87.023 psi)Min.: 0 Pa
(0 psi)
Description
The BNK series off line oil/air blast cooler features an integrated circulation pump. It is simple to maintain and provides low noise emissions. A by-pass can also be supplied. These high performance off-line coolers have compact dimensions. They use a motor with two spindles to run a fan and a pump. The matrix is simple to take apart.
Catalogs
Buhler catalogue for Fluid Control
434 Pages
Oil/air coolers BNK
7 Pages
Off-line cooler BNK ATEX-3GD
6 Pages
