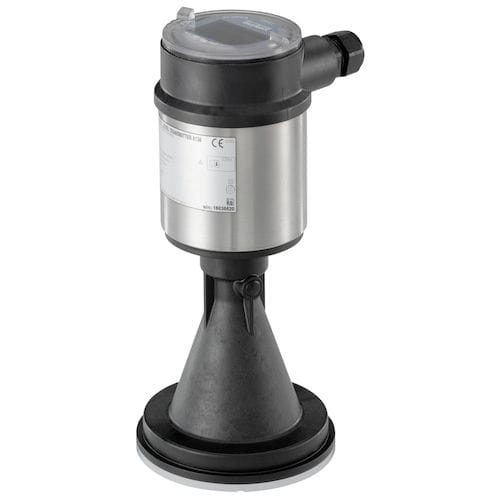

Radar level transmitter 8136 for water2-wireHART
Add to favorites
Compare this product
Characteristics
- Technology
- radar
- Medium
- for water
- Interface
- 4-20 mA, 2-wire, HART
- Applications
- for OEM
- Other characteristics
- ATEX
- Level range
Max.: 20 m
(65'07" )Min.: 0 m
(0'00" )- Process pressure
Max.: 3 bar
(43.51 psi)Min.: 0 bar
(0 psi)- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Type 8136 is a non-contact radar level meter for continuous level measurement. The unit is available in two variants: ● with encapsulated horn antenna. Particularly suitable for the level measurement of aggressive liquids in small vessels. ● with plastic horn antenna. Particularly suitable for flow measurement in open flumes or gauge measurement in waters.
For level measurement up to 20 m
4…20 mA/Hart, 2 wires
Adjustable with display/configuration module or PC
ATEX approvals
Insensitive to variations of temperature, pressure, medium data of the product and gas layers
