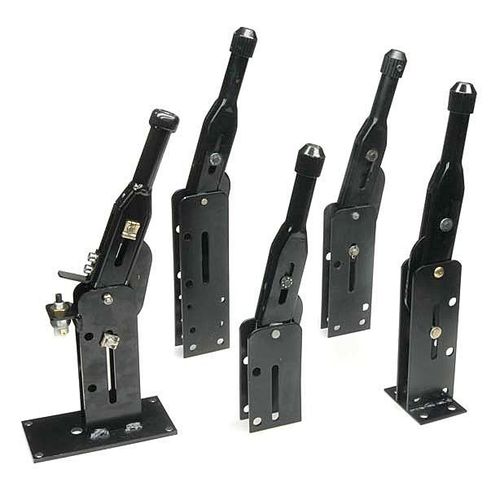

Handle control lever 165-508 series

brakesteelplastic

Cablecraft® park brake levers offer superior performance, quality and service life to both the designer and user. • Two distinct lever positions – Over center and off, which are approximately 90° apart • No ratcheting to limit travel or secondary unlocking required for operation • Heat-treated 4130 load link provides durability and reliability • Adjusting knob allows for setting the initial cable tension, travel, and compensates for system wear • Adaptable with side or flange mount configurations • Input lever and side plates have an epoxy finish or electro-static paint, and all other components are coated for corrosion resistance • Optional tamper-resistant knob to inhibit unauthorized adjustment • Optional weather-resistant switch at the off position • Supplied with hardware necessary to attach the cable end fittings to the load link • Loads of up to 1,000 lb. • Travel range is 2-7/16” maximum Material: • Nylon covered innermember • Plastic covered conduit • Stainless steel
