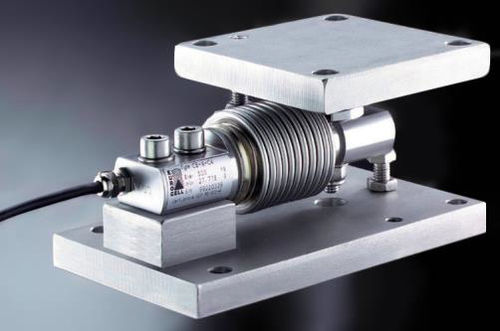

ATEX weigh module GPA-NF

stainless steelfor tank

Weighing system for small tanks, designed for easy installation and integration of weighing in existing system, up to 200 kg General Description GPA-NF weighing kits are complemented with mechanical accessories for sedimentation compensation and thermal expansion. The weighing units, connected in a junction box, are calibrated in our installations with the use of certified masses Applications Weighing system for application in small silos and tegons Compatibility with other equipment Compatible with a wide range of Cachapuz terminals Characteristics -Stainless steel structure -Overload protection -Able to absorb small shocks and vibrations -Accuracy class: 4000 -Maximum Power: 18 VAC / VDC -Sensitivity: 2 +/- 0.1% mV / v -Input Impedance: 350 +/- 5 Ω -Output Impedance: 350 +/- 5 Ω -Maximum overload: 150% -Protection degree: IP67 Legislation Approved versions for commercial transactions and versions for internal control in compliance with Directive 2014/31/UE Options ATEX version (Class C3) Certificate Z22 (Class C3) Capacities 50 kg, 100 kg, 200 kg
