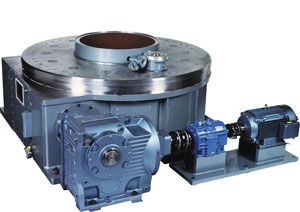

Rotary indexer E series

camfor heavy loads

The E-Series Index Drive is ideal for heavy-duty rotary dial applications. Their compact, low-profile design reduces floor space requirements while providing a large output mounting surface. Capable of supporting static loads in excess of 500,000 lbs, E-Series Index Drives are ideal for dial plate applications of up to 50 feet (15 m) in diameter. They can also be used to drive large conveyor systems. Features Large output mounting surface supported by a 4-point contact bearing superior thrust and moment capacity Large center thru hole to accommodate stationary center post, electrical wiring and air or hydraulic lines Complete motorized drive package with reducer and brake-motor combinations to suit most applications Precision cam with preloaded cam followers for maximum accuracy Durable welded steel housing Preloaded "center rib" design for smooth acceleration and deceleration with precision positioning
