Alpha-beta counter 5 XLB series

electronicfor samples

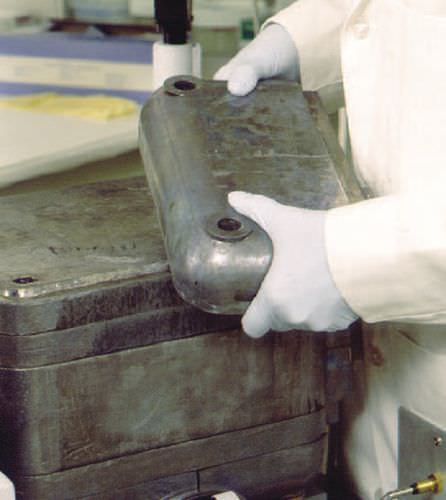

• Automatic single detector, ultra-low background counting system • Enhanced low background capability • Gas Stat digital gas conservation and monitoring system • Fifty planchet sample changer with 100 sample capacity optional • Molded low background passive shielding with interlocking design • Reduced system footprint and integrated portable cart • High performance dual anode 5.7 cm (2.25 in.) gas flow detector with ultra-thin gold sputtered window; single anode one inch detector option available • Advanced electronic diagnostics continuously monitor operating conditions • Universal auto-sensing power supply • Coded positive sample carrier identification • External or sample changer based bar code reader • CE compliant Superior Counting Performance, Unparalleled System Features The Series 5 XLB low background alpha/beta counter offers a completely integrated, computer controlled system for maximum flexibility. The Series 5 platform is designed to count samples the way they are prepared in a laboratory. Sensible and smart, Series 5 counters provide integrated intelligence to satisfy the most demanding applications and routine analysis. Enhanced Low Background and Productivity Due to increasing environmental regulations to reach lower detection limits, sample count times have increased reducing the overall sample throughput in the laboratory. The Series 5 counter incorporates enhanced technology to reduce system background and increase sample throughput. Using an improved guard detector, the system sensitivity for high energy, cosmic background is increased, enabling the anti-coincidence circuitry to detect and reject more spurious background events.
