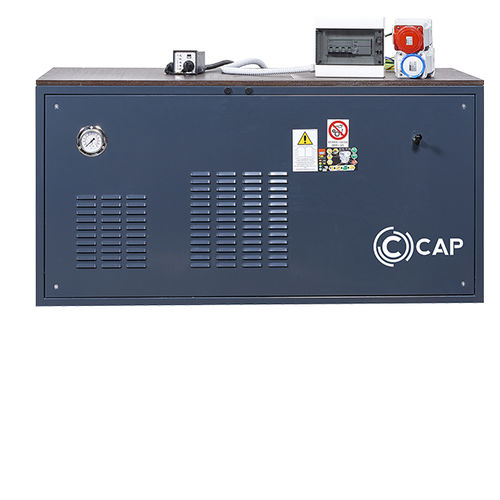

Piston compressor ALFA-MT
airdieselstationary

piston compressor
piston compressor
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
diesel
Portability
stationary
Application domain
industrial
Voltage
380 V, 220 V
Other characteristics
two-stage
Pressure

Max.: 12 bar
(174.05 psi)

Min.: 10 bar
(145.04 psi)

Flow

800 l/min
(211.34 us gal/min)

Power

10.2 ch
(10.2 hp)

Length

1,270 mm
(50 in)

Width

600 mm
(24 in)

Height

700 mm
(28 in)

Weight

220 kg
(485 lb)

Description

The Multienergy ALFA series machine is built with a solid acoustic insulaton structure. Its technical-functional characteristics make it a unique and exclusive product on the market. Can be customized to your needs. GENERATOR MONO - 220 V - 6.5 kVA GENERATOR THREE - 380 V - 7.5 kVA ENGINE - Hatz FUEL SUPPLY - Diesel STARTER - Electric
