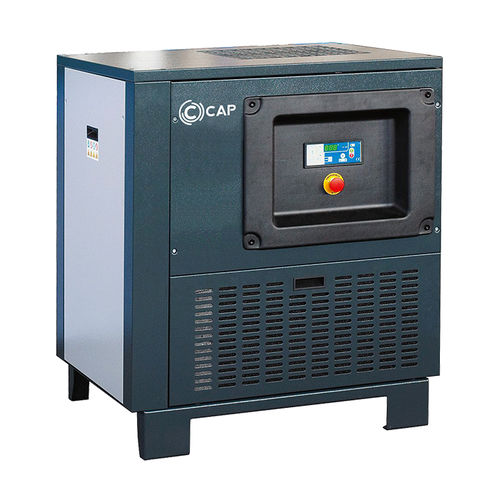

Screw compressor KC750-270E
airelectricstationary

screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Application domain
industrial
Voltage
400 V
Tank volume

270 l
(71.3 gal)

Pressure

Min.: 8 bar
(116.03 psi)

Max.: 13 bar
(188.55 psi)

Flow

820 l/min
(216.62 us gal/min)

Power

5.5 kW
(7.48 hp)

Length

1,600 mm
(63 in)

Width

550 mm
(22 in)

Height

1,450 mm
(57 in)

Weight

230 kg
(507.1 lb)

Description

Screw compressors with coaxial shaft powered by electric motor. The air tank and drier versions are supplied with line valve, air connection hose and by pass.
