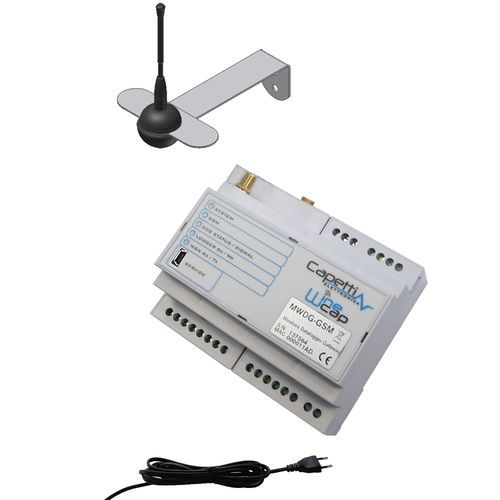

Communication gateway MWDG-GSM

wirelessGSMGPRS

Modular Wireless Datalogger Gateway - Control unit for collection, storage and export data - Manage up to 40 wireless probes/dataloggers using a database up to 2,500,000 samples - Equipped with external WSN and GSM antennas - Provided with RS485 with MODBUS RTU protocol and internal GSM for point-to-point connections and GPRS for connection to the www.winecap.it Service Center or for file upload to FTP server - To be used with WineCapManager (Data Configuration and Exporting Tool) software, which installed on a Windows PC, using USB port, allows probes/datalogger's configuration, radio network diagnosis, data export and analysis - WineCapManager can be used either locally and remotely using the GSM modem - 6U DIN rail mounting - May be expanded with EXP4IO (disabling the RS485 port) product line additional modules - Must be 15W-12/24Vdc externally powered (refer to DR1524 accessory).
