electric winch / for cable pullers / compact / explosion-proof
43/86 series Carl Stahl GmbH

{{requestButtons}}

Characteristics

  • Operation:

    electric

  • Application:

    for cable pullers

  • Other characteristics:

    compact, explosion-proof, gear

  • Capacity:

    Max.: 3200 kg (7054.79 lb)

    Min.: 125 kg (275.58 lb)

  • Speed:

    Max.: 0.3 m/s (0.98 ft/s)

    Min.: 0 m/s (0 ft/s)

Description

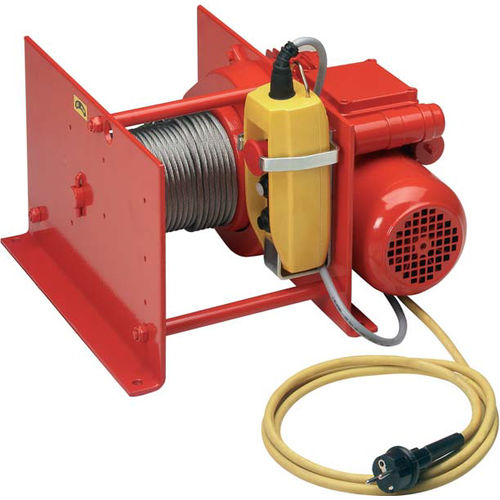

The Explosion-Proof Electric Cable Winch, manufactured by Carl Stahl GmbH, is specifically designed as a robust and technically mature configuration for all utilization. This device is available with a power supply of 230/400 V, 50 Hz, and built with 3-phase or 230 VAC one phase. It is also configured with dual rope speed of 125 to 500 kg in 230 VAC version.

Moreover, this product features an electric overload protection for capabilities of 1000 kg and beyond, and is constructed in IP54 protection class.
