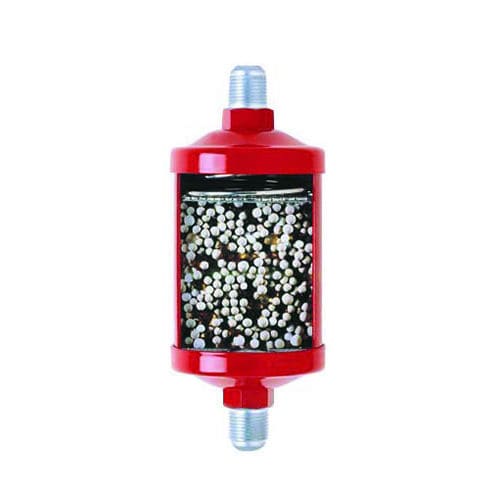

batch dryer / for refrigeration circuits / press



  • Batch/continuous:


  • Applications:

    for refrigeration circuits

  • Associated function:



Technical description
Filtering and drying of refrigerants and acid neutralization for liquid lines of refrigerating and air conditioning installations.
Maximal working pressure: 46 bar.
Great drying and acid neutralization capacity at all temperatures, thanks to a rigorous selection and a judicious mix of the chemical agents present in the filter driers (activated alumina in order to neutralise the acids and molecular sieves to adsorb moisture); the volume of free-grains drying agents used in a CARLY filter drier is greater than that present in an equivalent model with a solid core.
Initial drying capacity guaranteed by a 200 °C oven drying and airtight sealing.
Drying ensured for the subcritical CO2 applications at low temperatures.
Filter driers sizes that ensure interchangeability with most products of the market.
A dispenser located at the inlet ensures optimal distribution and permanent treatment of the whole refrigerant, inside the filter drier.
The copper-plated steel connections up to a diameter of 3/4 - 18 mm facilitate the brazing and allow using brazing alloys with a low silver percentage.
Installation possible in all positions.
GOST certified products.
