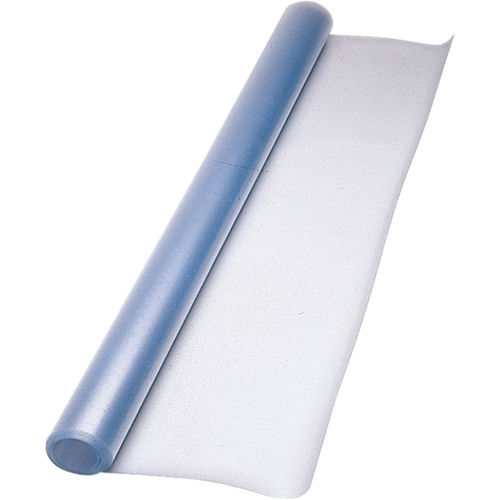

Arc suppression insulation blanket MP-123, MP-220, MP-35..., MP-37, MP-40 Series

rubberPVC

Electrical Insulating Blanket The electrical insulating blanket is used for the protection of workers from accidental contact with live or earthed electrical conductors, apparatus or circuits and avoidance of short circuits on electrical installations. CHARACTERISTICS •In accordance with the specific properties: -Category C : Resistance to bending at very low temperature (-40°C). -Category H : Oil resistance. Serial MP35 MP37 Blankets are fixed by insulated pliers or by adhesive insulating tape. CHARACTERISTICS : •Translucent flexible polyvinyl. •In accordance with IEC 61112 standard and according with class 0 specifications and specific categories : •A : Acid resistance •Z : Ozone resistance •Operating voltage : 1000 V AC. & 1500 V DC. •Operating temperature range : -25°C to +55°C. Serial MP-123 The « Velcro » tape allows the flexible blanket to be closed by pressing the edges together. CHARACTÉRISTICS •In accordance with IEC 61112 standard and according class 0 specifications. Operating voltage : 1000 V AC and 1500 V DC. •In accordance with specific properties : Category A : Acid resistant. •The insulating blanket is made of translucent polyvinyl with a « Velcro » adhesive tape around its perimeter. •The polyvinyl material is reinforced by a grid of synthetic fibers. •Operating temperature range: -40°C to +55°C. MP-220 - 220/1 The insulating blanket is used as protection for workers operating on live parts or in the vicinity of live parts. CHARACTÉRISTICS •In accordance with IEC 61112 standard and class 0 for operating voltage 1000 V AC or 1500 V DC. Withstand voltage : 10 kV. Test voltage : 5 kV. •Operating temperature range : -40°C to +55°C.
