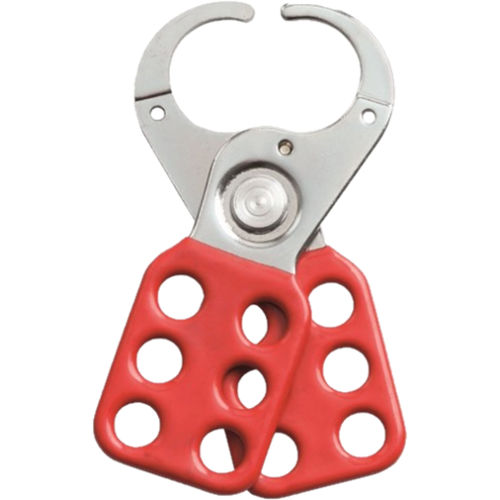

FIELD OF USE
The safety lockout hasp is used when you wish to use multiple padlocks to isolate one energy source. A hasp is placed through the isolating point and closed, allowing each authorized person to place their one padlock on it.
The system is then locked out, preventing any re-energizing until all padlocks are removed.
SPECIFICATIONS
- Accepts 6 padlocks with a shackle diameter up to 9 mm.
- ALM-6/25 and ALM-6/38 : The padlock fixing area is red vinyl coated for better grip and visibility
ALM-20/45 : Dual scissor action hasp.
The two different jaw sizes ensure the ultimate in adaptability when lockout conditions vary.
- Manufactured from high tensile steel sheet which has been electro-plated to prevent rusting.
ALM-6/25 : outside lenght 112 mm / Dimater jaw 25 mm / Weight 95 g
ALM-6/38 : outside lenght 125 mm / Dimater jaw 38 mm / Weight 110 g
ALM-20/45 :multiple opening of 45 mm and 20 mm inner width et 138 mm length, aluminum rivet provides a smooth movement. Available in plated in red powder coating to resist rust. Accommodates six padlocks.
•Diameter jaws: 20 mm & 31 mm.
