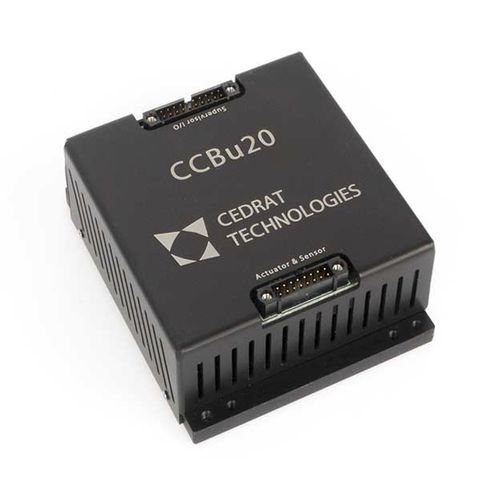

Motion controller CCBU20

Description The Compact Controller Board CCBu20 is an embedded all-in-one controller for piezo actuators. It features everything to drive and control a 2 axis piezo-mechanism in position loop. In standard, its integrated dual channel SG conditioner allows reading the position of the two axis of the mechanism. A powerful processor realizes closed-loop control at high refresh rate, and the controller can be tuned by the user with the HDPM45 interface. Thanks to a compact design, it has dimensions of only 91x77x37mm, making it suitable for embedded applications, or industrial applications where the volume is an issue. Available options 0-5V analog sensor input, Advanced controller Status Preliminary
