Straight fitting / hydraulic / zinc-plated steel / multi-port
Multi-X Duo 10 CEJN


  • Configuration:


  • Applications:


  • Material:

    zinc-plated steel

  • Other characteristics:

    multi-port, non-spill release

  • Diameter:

    10 mm

  • Operating pressure:

    Min.: 0 Pa (0 psi)

    Max.: 350 bar (5076.32 psi)

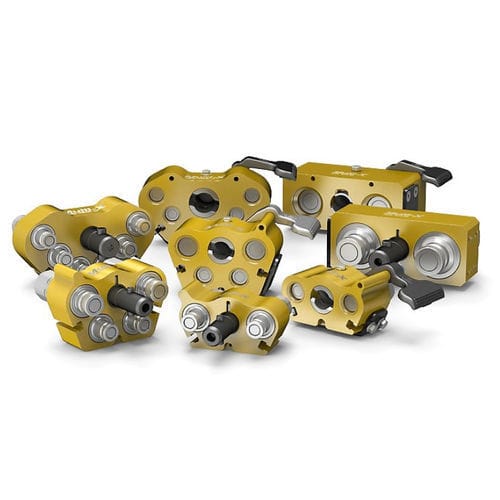

The Multi-X 10, which is manufactured by Cejn, is multi-connection plate with 2, DN10-sized ports, and it is designed with non-drip, flat-face couplings according to ISO 16028. It has a nominal flow that measures 10 mm in diameter with a maximum operating pressure of 350 bar, and as well as having a minimum burst pressure at 1200 bar.

Nipples that are equipped with pressure eliminators guarantee easy connections even with high residual pressure. An operating pressure of up to 35 MPa can be utilized on half the ports at the same time with the other half of the ports utilizes as return lines with an utmost pressure of 5 MPa.
