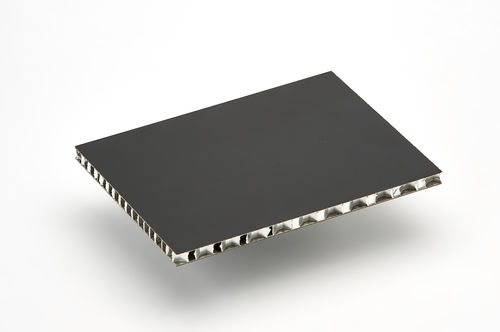

Honeycomb sandwich panel COMPOCEL H
plastic laminate facingfor false ceilingfor wall

honeycomb sandwich panel
honeycomb sandwich panel
honeycomb sandwich panel
honeycomb sandwich panel
honeycomb sandwich panel
honeycomb sandwich panel
honeycomb sandwich panel
Add to favorites
Compare this product


Characteristics

Core
honeycomb
Facing
plastic laminate facing
Applications
for wall, for interior, for partition wall, for furniture, for false ceiling
Thickness

Min.: 4 mm
(0.157 in)

Max.: 300 mm
(11.811 in)

Length

2,400 mm
(94.49 in)

Width

1,200 mm
(47.24 in)

Description

COMPOCEL® H is a sandwich panel with a core in aluminium honeycomb bonded with high pressure laminate face material. The external layer in laminate can have various finishes and colours. Lightweight panel COMPOCEL® H can be applied in different sectors and applications (partitions, interiors, furniture, ceilings and floors). A - SKINS OF HIGH PRESSURE LAMINATE Thickness: from 0,7 to 4 mm - Other thicknesses on request - Colors on request B - STRUCTURAL ADHESIVE C - CORE IN ALUMINIUM HONEYCOMB Aluminium honeycomb (Alloy 3003/3005/3103/3104) with hexagonal cells Diameter: Ø 1/4”, Ø 3/8”, Ø 3/4” Thickness Foil: from 50 to 70 microns
