electric slip ring / through-bore / for industrial applications / for packaging

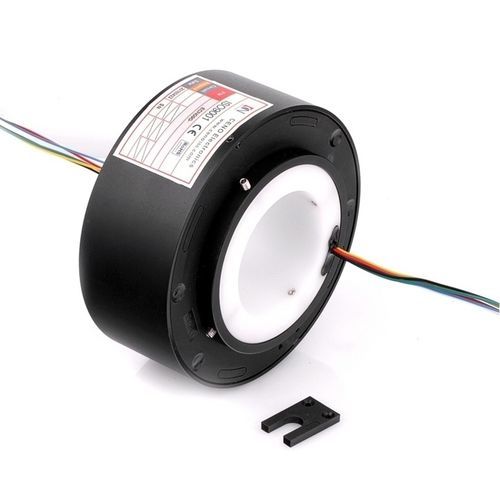

ECN080 CENO Electronics technology Co., Ltd

{{requestButtons}}

Characteristics

  • Type:

    electric

  • Construction:

    through-bore

  • Applications:

    for packaging, for industrial applications

  • Material:

    metal

  • Other characteristics:

    IP54, 380V AC/DC

  • Rotational speed:

    Max.: 300 rpm (1,885 rad.min-1)

    Min.: 0 rpm (0 rad.min-1)

  • Current:

    Max.: 15 A

    Min.: 5 A

  • Voltage:

    380 V

Description

ECN is defined as through bore series slip ring in CENO products.The hole is designed for passing a shaft when mounting it on the target machine.The contact of this series swivel adopts fiber brush technology which make contacts on each ring are multiple points to ensure the safe contact between rings and brushes.

Features
Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
Low friction, long life,Low torque, smooth rotation
Transmit data and analog signal,compatible with data bus protocol
