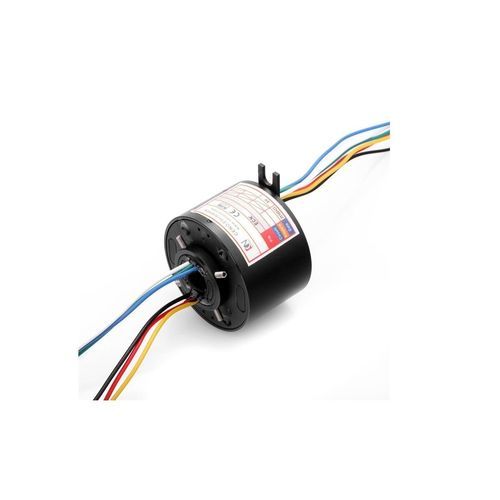

electric slip ring / Ethernet / PROFIBUS / CAN bus
ECN012S CENO Electronics technology Co., Ltd

{{requestButtons}}

Characteristics

  • Type:

    electric, Ethernet, USB, CAN bus, PROFIBUS, HDMI-SDI

  • Applications:

    robotic, for radar antennas, for CCTV applications

  • Other characteristics:

    IP54, waterproof

  • Rotational speed:

    Max.: 2,000 rpm (12,566 rad.min-1)

    Min.: 300 rpm (1,885 rad.min-1)

  • Current:

    2 A, 5 A, 10 A, 15 A

  • Voltage:

    380 V

Description

Through hole slip rings is also called as hollow shaft slip rings.CENO's hollow shaft slip ring hole size from 3mm to 5000mm are optional.Standard through hole are 12.7mm, 25.4mm, 38.1mm, 50mm, 60mm, 70mm, 80mm, 100mm which we named as ECN012, ECN025, ECN038, ECN050... and all other size are capable to be customized.Various signal such as Ethernet,USB,HDMI,SDI,Canbus,profibus and power are capable to be integrated into one slip rings to fulfill multi-function system’s demand.CENO has accumulated abundant experience on design solution of Anti-vibration,anti-shock,corrosion proof,water proof and cross talk prevention. Flexible structure design on integrated slip rings attract more and more market,not only civil industry,but also defense field.

Advantage
Through hole size: 12.7mm
Outer diameter:35mm
Circuit /channel/ ring number: up to 12
Protection grade: up to IP68
Rotation speed: 1100rpm
Current: 2Amp each
Signal type to be integrated: Ethernet,USB,HDMI,SDI,Canbus,profibus,audio...
