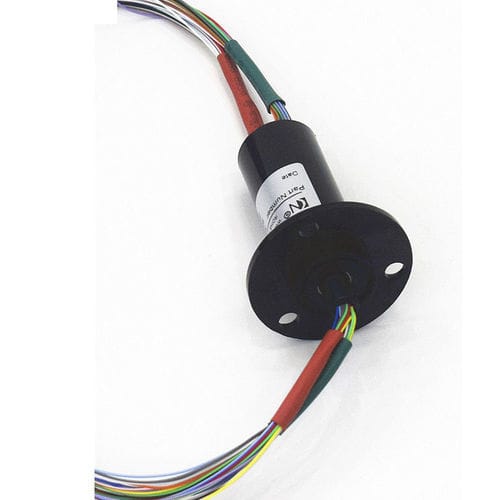

Capsule slip ring ACN22A-36
for CCTV applicationsfor military applicationsplastic

capsule slip ring
capsule slip ring
Add to favorites
Compare this product


Characteristics

Construction
capsule
Applications
for CCTV applications, for military applications
Material
plastic
Other characteristics
compact
Voltage

240 V

Primary current

2 A

Rotational speed

Max.: 300 rpm
(1,885 rad.min-1)

Number of channels

36 unit

Description

ACN22A-36 is one slip ring belongs to CENO capsule slip ring ACN series has 22mm diameter. CENO's small size includes ACN,BCN,CCN,DCN series.They have flexible spec options to fulfill the various and complex requirement of systems.We also call them capsule slip rings.Ring number are range from 2 up to 100 rings.Power and signal are easily to be integrated into one slip rings under our years of proven technique.Outstanding signal types are Ethernet,canbus,profibus,RS,HDMI,HD-SDI,USB and so on. Typical outside diameter is 5.5mm,12.4mm,22mm in these series. Typical applications: *CCTV pedestal *Automatic arm *Medical equipment *Rotary index table *Production line, industry process equipment Advantage: *Continuous transmission of signal and/or data under 360° unrestrained rotation *Less noise, long life *Low torque, smooth rotation *Electrical Noise<0.01Ω
