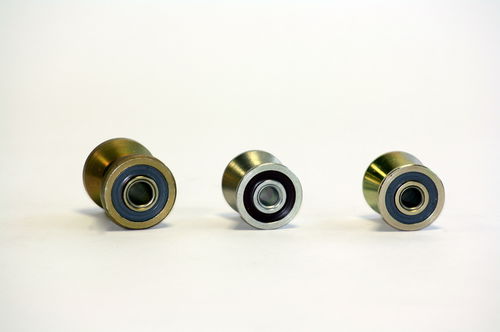

Bobbin wheel type roller CGRsteelslaughterhousefor the food industry
Add to favorites
Compare this product
Characteristics
- Type
- bobbin
- Material
- steel
- Applications
- slaughterhouse, for the food industry
- Other characteristics
- angular-contact
- Outer diameter
Min.: 36 mm
(1.417 in)Max.: 49.5 mm
(1.949 in)- Load capacity
Min.: 0 daN
Max.: 840 daN
Description
ROLLERS WITH ANGULAR CONTACT FOR MONO-RAIL PRODUCTION LINES
Geometric studies have been used to optimize load distribution.
Angular contact ball bearings are filled with an optimized number of balls on both rows.
The points of contact have been calculated in relation to the load-bearing points on the tubular guide rail.
Improved resistance to sudden shocks and shifts in direction.
Axial clearance allows the rollers to continue functionning efficiently even in bends in the production lines.
Housing, inner ring, spacer with heat and surface treatments to reinforce resistance to loads and corrosion.
Seals in Viton®, Balls in 100Cr6, Special lubricants for the food industry.
Catalogs
ROLLERS FOR SLAUGHTERHOUSES
2 Pages
BALL TRANSFER UNITS
2 Pages
